過濾式系列離心機(Filter Centrifuge)

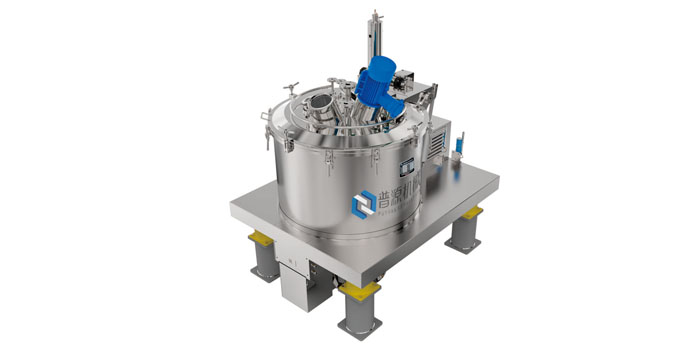

PGZQ全自動下卸料自清潔型離心機(PGZQ series Automatic self-cleaning bottom discharge centrifuge)

文字：[大][中][小]

PGZQ系列
全自動下卸料自清潔型離心機



PGZQ series
Automatic self-cleaning bottom discharge centrifuge
        PGZQ全自動下卸料自清潔型離心機是一種立式、小刮刀卸料、自動間歇操作過濾式離心機。它在一個工作周期內可按照不同要求，依次自動完成進料、分離、卸料、清潔濾袋等工序。該機采用HMI人機界面觸摸操作系統和PLC可編程控制器，配合變頻器控制轉速系統、機械式自動卸料裝置、料滿自動檢測裝置及各類閥門聯合動作，實現整機的自動化操作。適用于細顆粒和中等顆粒度固相懸浮液的固液分離，也可用于纖維狀物料的固液分離，主要服務于化工、食品、制藥、礦物、環保等行業。


PGZQ Automatic self-cleaning bottom discharge centrifuge,discharges by small scraper,operates intermittently.It automatically completes feeding,separating,discharging and cleaning with in work cycle according to different requirements.PGZQ series centrifuge adopts HMI and PLC,working accompanies with converter,machinery automatic discharging unit,overload automatic detection unit and valves,to realizes automatic operation of whole machine set.It is suit for separation of solid suspension includes tiny and medium particles,also suit for separation of fibrous material.Application field:chemical industry,food industry,pharmaceutical industry,mining industry and environmental protection industry,etc.

◎工作原理



◎Working principle
        待分離物料由進料管進入高速旋轉的離心機轉鼓，在離心力場的作用下，均布在轉鼓內壁的濾布上，進行過濾分離。分離過程中液相透過固相物料、濾布的縫隙和轉鼓壁上的小孔，從底盤的出液管流出；而固相物料則被截留在轉鼓壁內。達到分離要求后，通過刮刀卸料，出渣口排出。最后，濾袋清潔機構動作，清除殘余的固相物料。   Material comes into rotating drum trough feed tube,centrifugal force field makes it spread evenly on filter cloth of interior wall.During separation process,liquid trough gap within solid phase and filter cloth also holes of drum interior wall,discharges by outlet.While solid material retained within drum wall.After separation,scraper cuts filter cake into pieces,then discharges by outlet.The last step is self-cleaning,remove solid residues.

◎主要特點



◎Main features

        整機遵循工業設計“系統集成，跨界融合”的理念，綜合功能性、實用性、安全性進行系統設計，在滿足設備性能的同時，強化設備易操作性和易維護性，確保設備高效、穩定、安全運行，真正為用戶提升價值。



   Machine to follow the industrial design the concept of "system integration, cross-border integration", comprehensive functional, practical, security system design, while meet the equipment performance, strengthen equipment operability and maintainability, to ensure the efficient and stable, safe, truly add value for the user.

◎使用安全



◎Safe in use
一、主軸軸承運行安全
1）優化主軸承結構布局，裝配與拆卸簡單可靠，保證軸承正常使用。
2）集中式油脂潤滑。主軸承上下組單獨高壓供油，降低現場維護保養的難度，為設備安全運行提供保障條件。
二、料液在轉鼓內均布安全
布料方式：葉片風輪式旋轉斜盤布料。
1) 改善因料液進入布料器內形成的流體紊亂而造成布料器拋料現象。
2) 消除因布料器工作時，在出料口形成流體壓力墻造成的布料受阻及分布不均現象。
3）減少料液在布料器內停留時間，快速通過，均勻布料。
4）改善因布料不均而造成的設備異常震動現象，降低對設備零部件的損害。
三、物料安全
物料清除方式：杠桿式自動清除濾袋上殘留物料。濾袋在工作狀態時貼附于轉鼓內壁，在完成料液分離、刮刀卸料之后，濾袋在連桿系統的作用下發生形變（成為上大下小與主軸同心的60度圓錐），從而將濾布壁上的殘留固相物剝離，從下卸料口排出。
1）連桿結構簡單，功能可靠。
2）提高分離效果。
3）有效清除殘留物料，避免物料交叉污染。
四、操作安全
設計時充分考慮設備的操作安全性，保證現場操作人員及設備運行安全。
1）外置手動潤滑油脂加油泵，方便現場人員操作，確保主軸軸承當班正常保養維護，有效降低設備故障率，提高生產效率。
2）設備上的高壓油管路、線路設計在保護殼內，并將接口集中放置，現場整潔無外露，確保人、機安全。
3）HMI人機界面，PLC控制，整機自動化操作，無人看護，自動監測與保護。

A. Main shaft bearing safety running
1) Optimize main shaft bearing structure,assembly and dis-assembly both simply and reliable,ensure safe usage of bearing.
2) Centralized lubrication of grease. Main bearing separately supply grease to upper unit and lower unit by high pressure,downgrade of on site maintenance difficulty.
B. Liquid material safely spread within drum
Distribution method：Blade wind wheel rotative distribution
1) Relieve attrition caused by liquid disorder.
2) Remove distribution blockage and unevenly distribution made by liquid pressure wall nearby outlet.
3) Reduce the time of material stays within distributor,evenly distribution.
4) Relieve unusual vibration of equipment,protect accessories and components.
C. Residues safety
Residues removal：lever type automatically remove residues on filter bag.
In operate state,filter bag adhesive to drum interior wall；in non-operate state,filter bag deforms under the effect of connecting rod（become a 60 degree circular cone concentric with main shaft),remove residues on filter cloth and discharge by outlet.
1) Connecting rod has a simple structure and reliable function.
2) Improved separation effectiveness.
3) Effectively remove residues,protect material from cross infection.
D. Operation safety
Unique design ensure safety of on site personnel and equipment running.
1) External manual oil pump,facilitate on site personnel to operation,ensure on-duty maintenance for main shaft bearing ,reduce failure rate meanwhile promote production efficiency.
2) High pressure oil pipeline and circuit designed within shield,interfaces are laid together. Clean and tidy,ensure safety of human and equipment.
3) Adopt HMI and PLC,unattended operation,automatically monitoring and protecting.





◎維護安全



◎Safety in maintenance

一、主軸拆卸、裝配安全
創新設計的上抽式主軸，配合NU系列內外圈可脫卸圓柱軸承，可方便主軸從機體分離，降低裝配與拆卸難度，提高安裝質量，拆裝方便快捷，零件無損傷。
二、主機軸承座與軸承外圈拆卸、裝配安全
創新設計的分離式軸承座套結構，改變傳統的軸承外圈直接與軸承座主體安裝的方式，現場拆卸方便簡易，零件無損傷。
三、主軸軸承內圈拆卸、裝配安全
主軸在設計時參考高壓油拆卸軸承的原理，降低維護難度，實現拆裝無損傷，同時延長設備使用壽命。
四、設備防護安全
設備各功能結構模塊化設計并內置于對應的外防護罩殼中，既保證了維修拆卸方便，又有效地保護人機安全。







A. Safety assembly and dis-assembly for main shaft
Innovative upper removal main shaft,equipped with NU series cylinder bearing adopts detachable interior and exterior rings,facilitate shaft depart from centrifuge,easy handle and do no harm to accessories.

B. Safety assembly and dis-assembly for main machine bearing exterior ring
Unique separating bearing sleeve structure,facilitate exterior ring depart from bearing pedestal,do no harm to accessories.

C. Safety assembly and dis-assembly for main machine bearing interior ring
Design of main shaft refers to principle of high pressure oil detaches bearing,easy to maintenance,realize dis-assembly free of harm,meanwhile prolong service life.

D. Protection of equipment
Functional structure designed modularly,build in relative shields,facilitate dis-assembly,keep human and machine from danger.

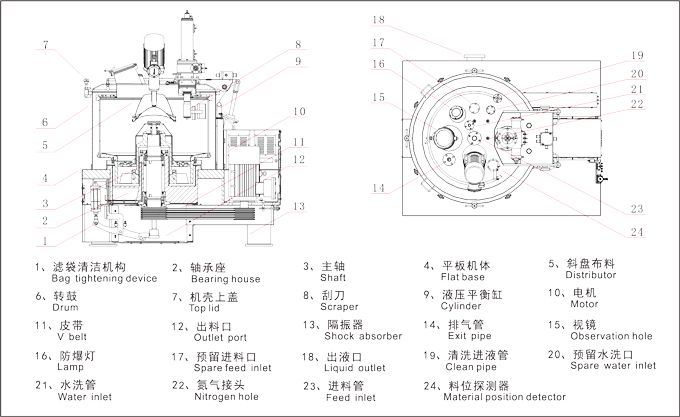

      ◎結構示意圖(Structure schematic diagram)

◎主要材料



◎Composition of critical parts

1、平板為Q235A包襯不銹鋼。
2、轉鼓部件除轉鼓底為鑄鐵包襯不銹鋼外其余全部采用不銹鋼。
3、機殼、機蓋包括附屬品全部采用不銹鋼。
4、平衡缸采用全不銹鋼。
5、軸承座采用鑄鋼件(ZG230-450)。

   1) Flat plate is made of Q235A carbon steel coated by stainless steel.
2) Drum base is made of cast iron coated by stainless steel,other parts of drum are stainless steel.
3) Shell,top lid and belongings are made of stainless steel.
4) Balance cylinder is made of stainless steel.
5) Bearing pedestal are made of cast iron parts(ZG230-450).

◎結構與配置(Structure and configuration)

項目(Item)
標準(Ordinary )
可選(Alternatives)
整機結構
(Whole machine set)
平板式結構
Flat plate
　
轉鼓與物料接觸部分的材質
(Drum contact with material part’s composition)
SUS304不銹鋼
SUS304 stainless steel
SUS316、316L、321不銹鋼、鈦材、襯塑、襯HALAR、襯膠等
Stainless steel:SUS316,SUS316L,SUS321;titanium;lining plastic;lining HALAR;lining rubber;etc.
上蓋結構
(Top lid)
大翻蓋
Entire reversible
　
上蓋附件
(Top lid belongings)
進料管、水洗管、視鏡、防爆燈、刮刀裝置、料位探測器
Feed tube,washing tube,observation hole,explosion-proof lamp,scraper unit,material position detecto
排氣孔、充氮口、撇液裝置及其他結構要求
Air outlet,nitrogen discharge hole,liquid skimming unit or others
開蓋方式
(Lid opening)
快開結構，平衡缸助力開蓋
Fast opening structure,Balance cylinder facilitate opening

布料方式
(Distribution method)
斜盤布料
Slope dish
側向布料
Side distribution
電機種類
(Motor type)
變頻電機
frequency-alterable
普通電機、防爆電機、節能電機
Without frequency adjusting,explosion-proof or energy saving
制動方式
(Braking method)
能耗制動
Dynamic braking
回饋制動
Feedback braking
操控系統
(Controlling system)
變頻+PLC+HMI人機界面
frequency-alterable+PLC+HMI
　
安全防護(Safety technologies)
振動保護、開蓋聯鎖保護、轉速檢測、過載過熱保護、刮刀原位保護、刮刀旋轉與升降機械電氣雙重聯鎖保護
Over vibration,lid opening interlock,speed detection,overload,overheat,scraper in situ,scraper turning and lifting machinery electric dual control
轉速顯示、防爆裝置、在線含氧檢測充氮保護系統
Speed display,explosion-proof unit,oxygen detection and nitrogen protection online system
卸料方式
(Discharge method)
液壓刮刀
Hydraulic scraper

清潔處理
(Cleaning)
水洗清潔、濾袋自動清除裝置
Washing,filter bag automatic remove unit
在線清洗結構、高壓氣體反吹系統
Online washing structure,high pressure air back flushing system
三角皮帶
(Triangular belt)
普通三角皮帶
Ordinary
防靜電三角皮帶
Static proof
其他
(Others)
　
其他配置要求

◎技術參數(Technical parameters)

機型
Model
轉鼓直徑
Drum D
轉鼓高度
Drum H
轉鼓轉速
Drum speed
分離因數
Separation factor
最大容積
MaximumVolumn
最大裝料量
Maxiumum load
電機功率
Motor power
重量
weight
外形尺寸
dimensions
mm
mm
r/min
　
L
Kg
KW
Kg
mm
PGZQ1000
1000
500
0-1000
0-559
170
230
15
4000
2100×1600×2300
PGZQ1250
1250
630
0-1000
0-698
400
520
22
7000
2410×1820×3370
PGZQ1600
1600
720
0-850
0-646
720
900
37
13000
3000×2400×3500
PGZQ1800
1800
800
0-800
0-645
900
1250
55
15000
3230×2600×3800

此為常用參數，具體產品所用參數根據用戶需要定制。
Above are ordinary parameters,could tailored according to customer’s requirements.
