過濾式系列離心機(Filter Centrifuge)

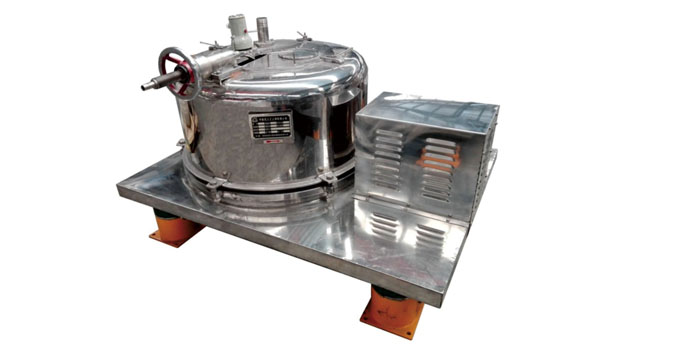

上卸料沉降離心機
|
PSC series
|
|
|
PSC系列離心機用途廣泛，尤其適用于離心過濾中因固體顆粒易堵塞過濾介質而過濾阻力過大時或細顆粒漏失過多時的懸浮液分離。該沉降離心機可用于結晶、化學沉淀物、煤粉等懸浮液的分離、各種污水污泥的脫水以及動植物油的除渣澄清等領域。
|
PSC series centrifuge especially suit for separation of float liquid:1）has particles easily jammed;2）has tiny particles leak too many.Application field:crystal,chemical sediment,coal powder,wastewater,sludge,animal fats and vegetable oils.
|
◎工作原理 |
|
|
|
沉降式離心機的轉鼓壁上無孔，待分離物料由進料管進入高速旋轉的離心機轉鼓，在離心力場的作用下形成環狀液層，其中的固體顆粒沉降到轉鼓壁上，形成沉渣。澄清的液體經過吸液管排出。分離結束時用人工或機械方法卸出沉渣。
|
Floating liquid come into drum trough feed tube,centrifugal force field makes solid phase decanting on drum wall forms residues.Clarified liquid discharge trough priming tube.After separation,discharge residues by human or by machinery.
|
◎主要特點 |
|
|
|
1、轉速相對較高，分離因數大。
2、與物料接觸為不銹鋼，耐腐性能好。
3、設備主要零件表面均采用精密拋光處理。
4、維護方便快捷。
|
1）Promoted rotating speed and separation factor. |

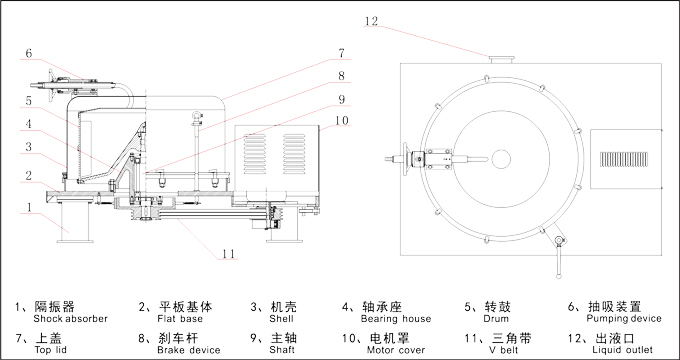

◎結構示意圖(Structure schematic diagram)
◎主要材料 |
◎Composition of critical parts |
|
|
1、平板為Q235A包襯不銹鋼。
2、轉鼓部件除轉鼓底為鑄鐵包襯不銹鋼外其余全部采用不銹鋼。
3、機殼、機蓋包括附屬品全部采用不銹鋼。
4、軸承座采用鑄鋼件(ZG230-450)包襯不銹鋼。
|
1）Flat plate is made of Q235A carbon steel coated by stainless steel. 2）Drum base is made of cast iron coated stainless steel,other parts of drum is fully stainless steel. 3）Shell,top lid and belongings are made of stainless steel. 4）Bearing pedestal is made of cast iron（ZG230-450）coated stainless steel. |
◎結構與配置(Structure and configuration)
|
項目(Item)
|
標準(Ordinary )
|
可選(Alternatives)
|
|
整機結構
(Whole machine set)
|
平板式結構
Flat plate
|
|
|
轉鼓與物料接觸部分的材質
(Drum contact with material part’s composition)
|
SUS304不銹鋼
SUS304 stainless steel
|
SUS316、316L、321不銹鋼、鈦材、襯塑、襯HALAR、襯膠等
Stainless steel:SUS316,SUS316L,SUS321;titanium;lining plastic;lining HALAR;lining rubber;etc.
|
|
上蓋結構
(Top lid)
|
無蓋
Without lid
|
小翻蓋
Reversible small lid
|
|
上蓋附件
(Top lid belongings)
|
進料管、視鏡、防爆燈、料位探測器
Feed tube,observation hole,explosion-proof lamp,material position detector
|
|
|
布料方式
(Distribution method)
|
人工
manual
|
側向布料
Side distribution
|
|
出液方式
(Liquid discharge)
|
抽吸裝置
By suction device
|
|
|
電機種類
(Motor type)
|
普通電機
Ordinary
|
變頻電機、防爆電機、節能電機
frequency-alterable,explosion-proof or energy saving
|
|
制動方式
(Braking method)
|
能耗制動
Dynamic braking
|
手動剎車、回饋制動
Manual braking,feedback braking
|
|
操控系統
(Controlling system)
|
變頻、手動
frequency-alterable,manual
|
PLC+HMI人機界面
PLC+HMI
|
|
安全防護(Safety technologies)
|
振動保護、機電聯鎖保護、電機防護罩、過載過熱保護
Over vibration,electromechanical interlock,motor shield,overload,overheat
|
轉速顯示
Speed display
|
|
卸料方式
(Discharge method)
|
人工
manual
|
|
|
清潔處理
(Cleaning)
|
人工
manual
|
在線清洗結構
Online washing
|
|
其他
(Others)
|
|
其他配置要求
|
◎技術參數(Technical parameters)
機型
Model
轉鼓直徑
Drum D
轉鼓高度
Drum H
轉鼓轉速
Drum speed
分離因數
Separation factor
最大容積
MaximumVolumn
最大裝料量
Maxiumum load
電機功率
Motor power
重量
weight
外形尺寸
dimensions
mm
mm
r/min
L
Kg
KW
Kg
mm
PSC450
450
300
0-2300
0-1333
20
30
3
430
1220×850×830
PSC600
600
320
0-1900
0-1180
45
70
4
710
1410×1000×1070
PSC800
800
400
0-1500
0-1000
100
135
7.5
970
1650×1200×1141
PSC1000
1000
420
0-1200
0-800
140
200
11
2000
2000×1500×1230
此為常用參數，具體產品所用參數根據用戶需要定制。
Above are ordinary parameters,could tailored according to customer’s requirements.
